Product Overview

Product Name

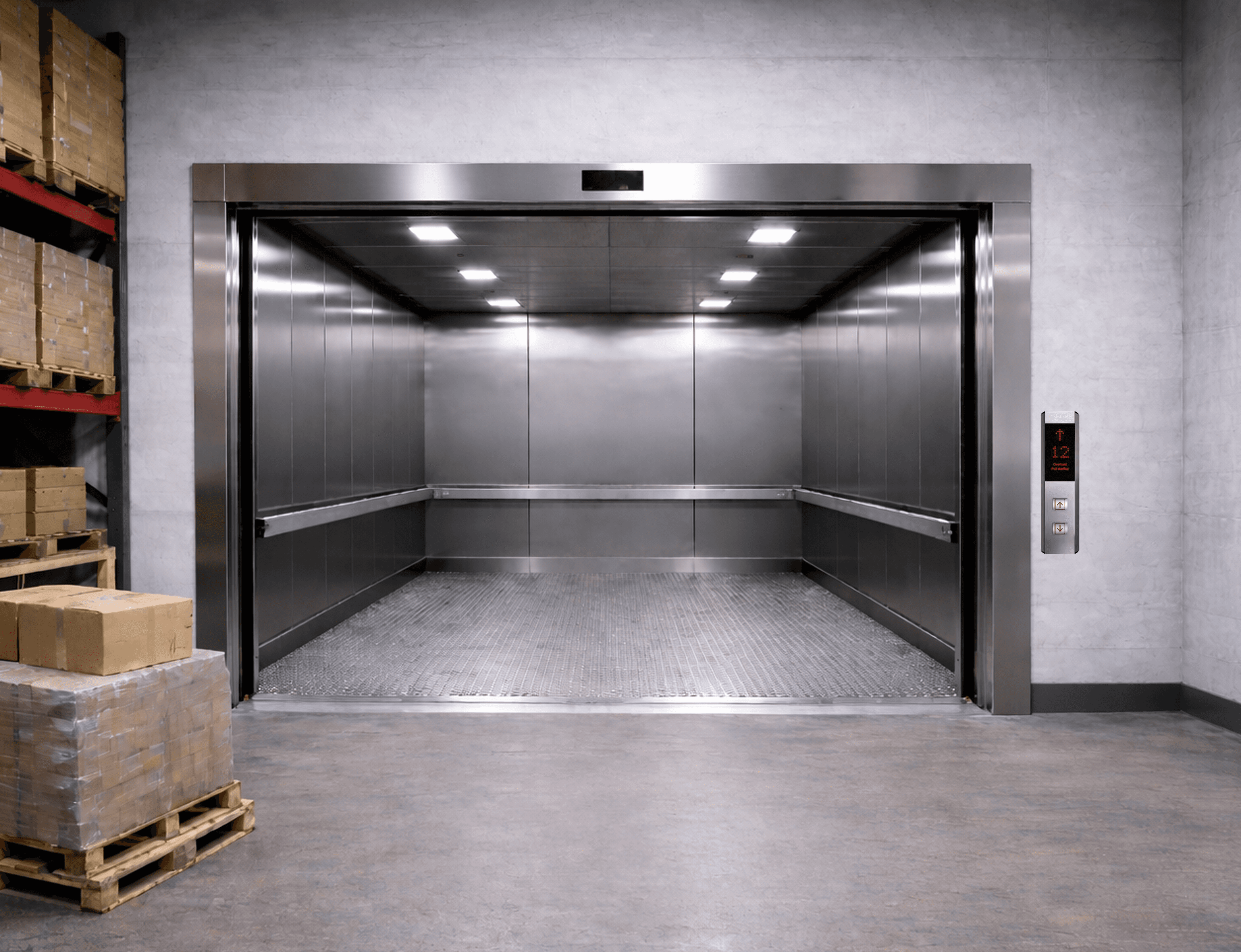

FREIGHT / GOODS ELEVATOR

Quick Specs

• Capacity: 630–1600 kg (approx. 8–21 persons)

• Speed: 1.0–2.5 m/s (project dependent)

• Travel range / Floors: Project dependent (mid‑rise to high‑rise as applicable)

• Drive configuration: MR / MRL

• Door type options: centre‑opening / telescopic (as applicable)

• Power supply: Three‑phase (recommended)

Technology

• Drive options: Traction (geared/gearless depending on speed and efficiency needs).

• Control system: Microprocessor‑based controller with VVVF drive for smooth ride and accurate levelling.

Safety Standards

• Overspeed governor and safety gear (as applicable)

• Auto Rescue Device (ARD) / emergency lowering (as applicable)

• Door safety sensors / light curtain

• Emergency alarm and emergency light

• Two‑way communication (intercom) (as applicable)

• Fireman’s switch / fire recall (where applicable)

• Overload protection

• Manual rescue provisions

• Designed to meet applicable BIS/IS safety requirements and relevant EN standards, as applicable.

Specialty & Applications

• Suitable for offices, mixed‑use buildings, and commercial facilities needing consistent performance.

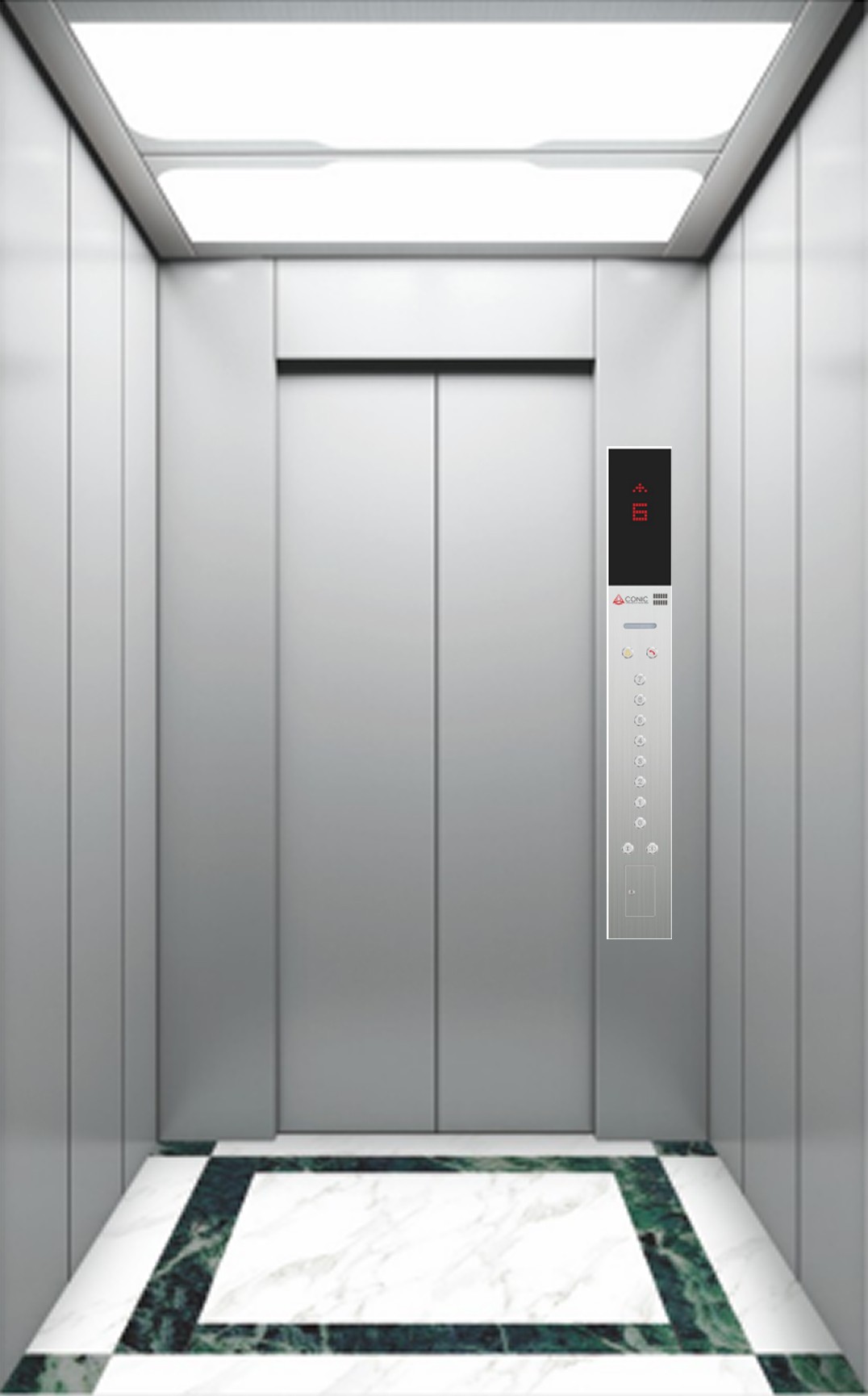

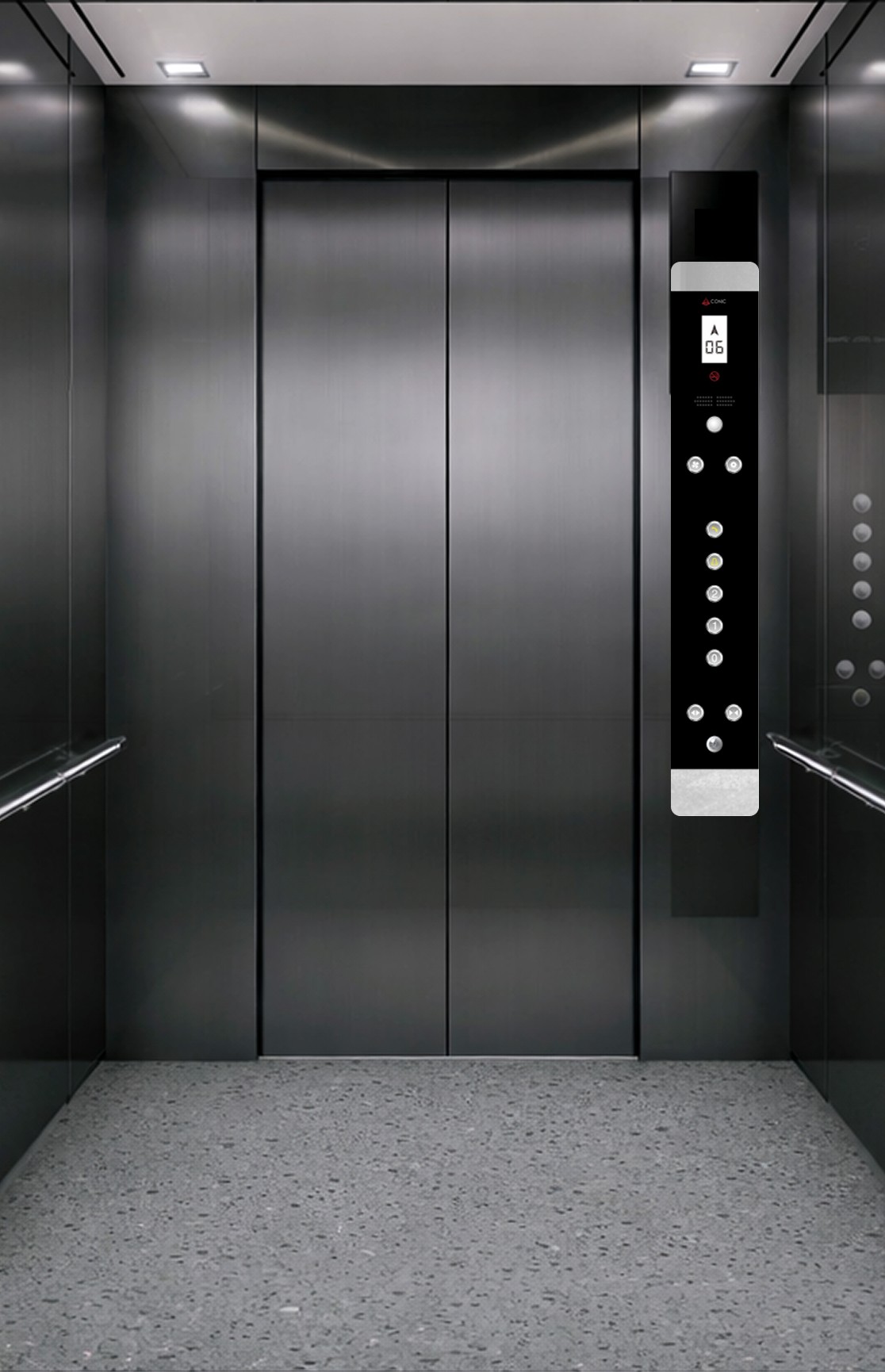

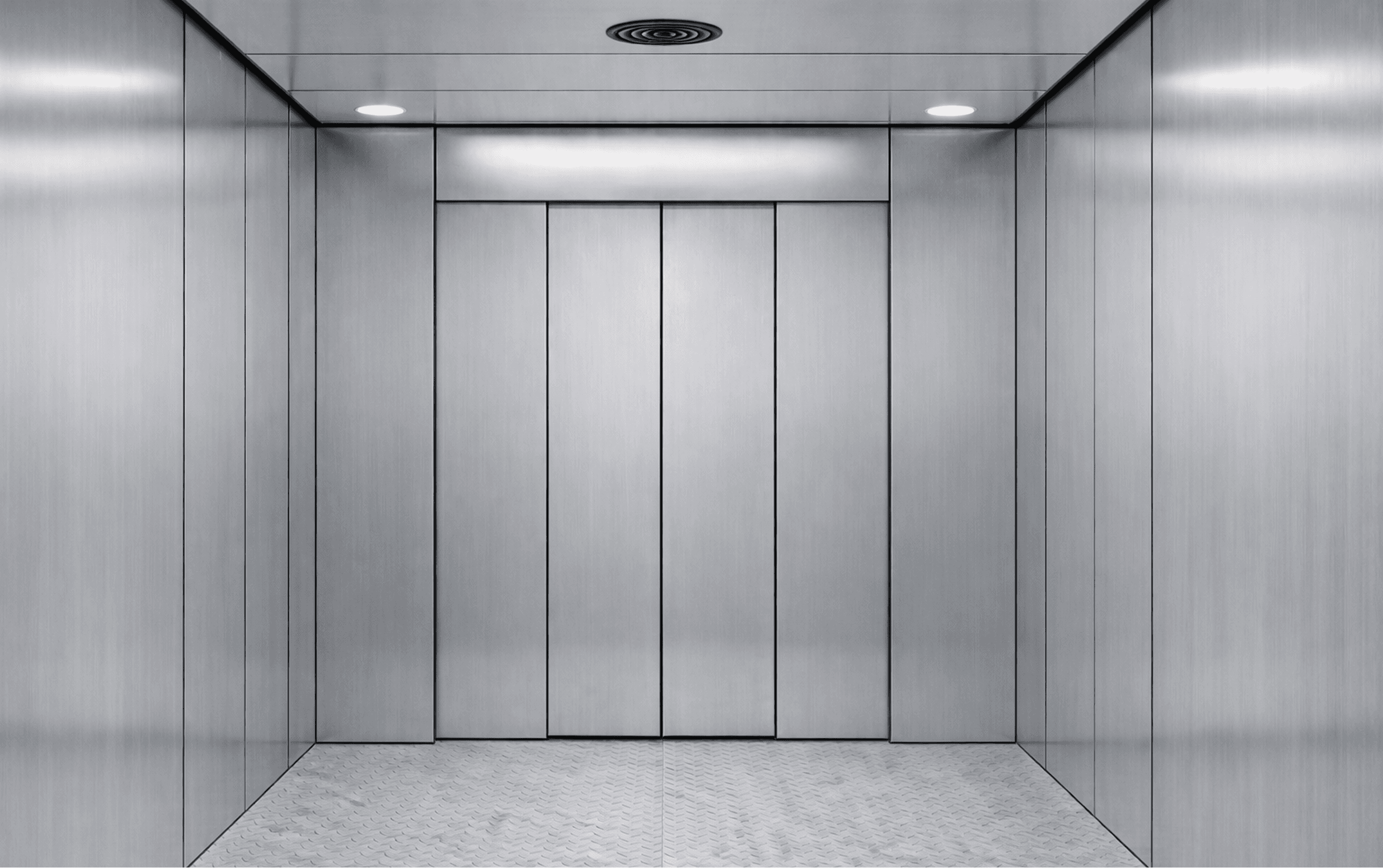

Cabin Options – design & finishes

• Standard to premium cabin packages (as applicable)

• Stainless steel / laminate / painted finishes

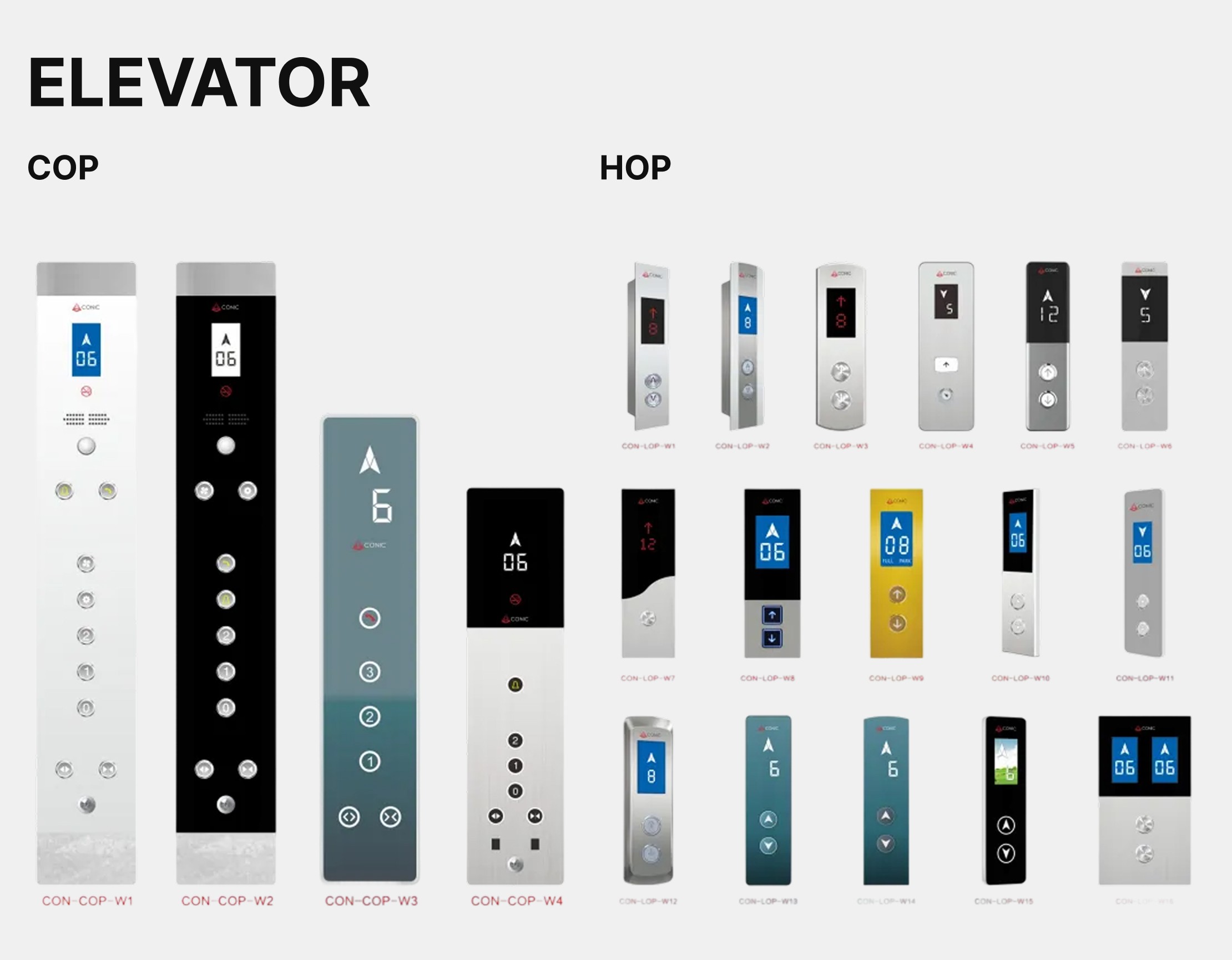

• Lighting, flooring, and display options
